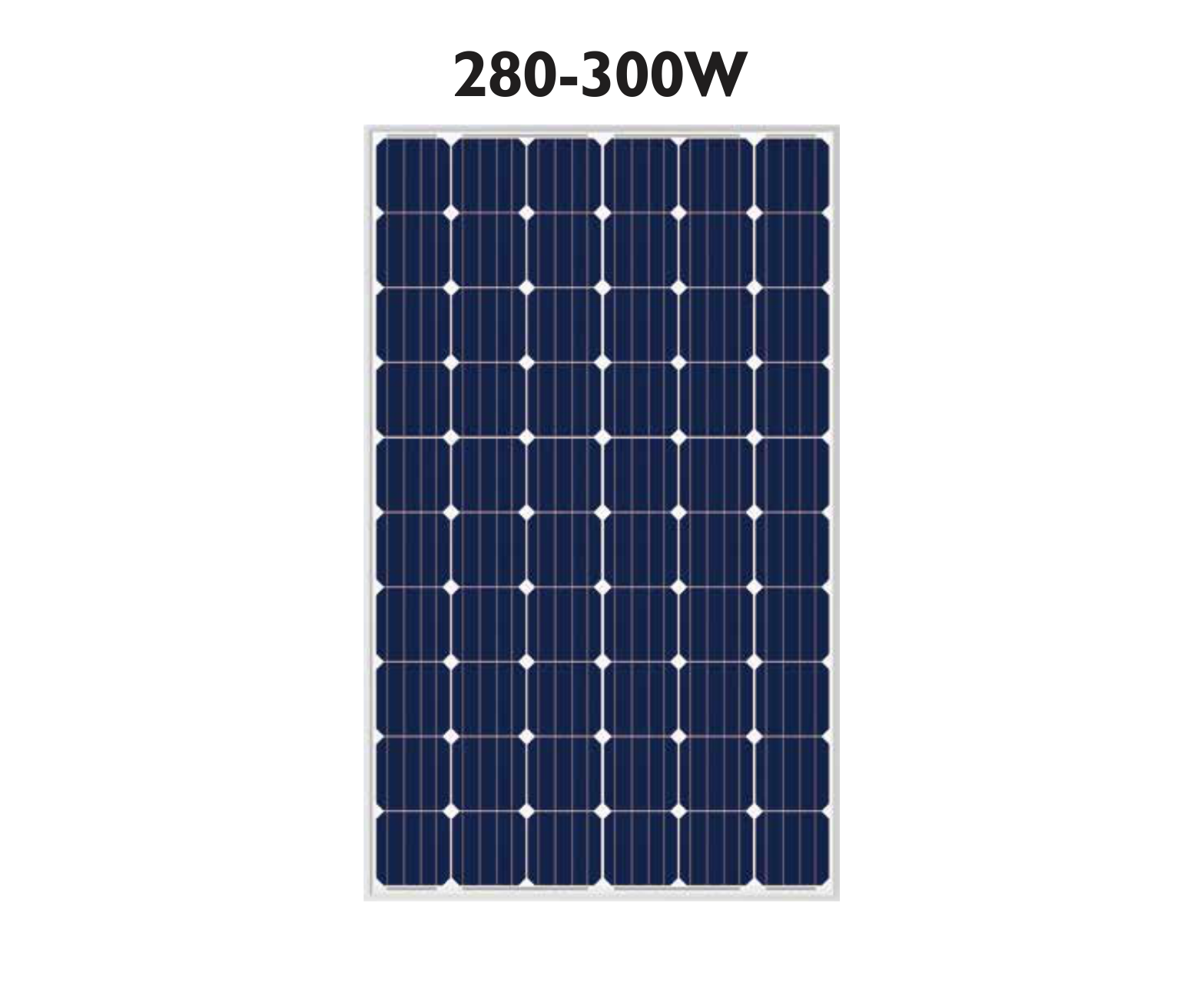

280-300W Range

Leading Features

  • Superior Module Efficiency as per international Benchmarks
  • Top Rank in Photon yeild measurement
  • safety for salt mist corrosion and ammonia corrosion
  • world 1st company to pass "Thresher Test" and "On-site Power Mesurement Validation" Certificate
  • Advanced glass and solar cell surface texturing allow for excellent performance in low-light environments
  • PID free Product, passing TUV SUD system voltage durability test
  • Suitable for All Climates

Electrical Characteristics (STC):

Model (as per IEC URE-280-6MB URE-285-6MB URE-290-6MB URE-295-6MB URE-300-6MB
Rated Power at STC(Pmp) 280 285 290 295 300
Open Circuit Voltage(Voc) 38.9 39.1 39.3 39.5 39.7
Short Circuit Current(Isc) 9.22 9.33 9.44 9.56 9.65
Minimum Power Voltage(Vmp) 31.3 31.5 31.7 31.9 32.1
Minimum Power Current(Imp) 8.95 9.05 9.15 9.25 9.35
Module Efficiency (nm) 17.11 17.41 17.72 18.02 18.33

Electrical Characteristics

Model (as per IEC URE-280-6MB URE-285-6MB URE-290-6MB URE-295-6MB URE-300-6MB
Maximum Power at NOCT-(Pmp) 208 212 215 219 223
Open Circuit Voltage(Voc)(V) 36.0 36.2 36.3 36.5 36.7
Short Circuit Current(Isc) (A) 7.45 7.54 7.63 7.73 7.82
Minimum Power Voltage(Vmp) 29.7 29.9 30.0 30.1 30.3
Minimum Power Current(Imp) 7.01 7.09 7.17 7.28 7.36
Power Tolerance (W) (0,4.99) (0,4.99) (0,4.99) (0,4.99) (0,4.99)
Maximum System Voltage (V) 1500(TUV) 1500(TUV) 1500(TUV) 1500(TUV) 1500(TUV)
Maximum Series Fuse Rating (A) 20 20 20 20 20

Mechanical Specification

External Dimensions 1650 x 992 x 40mm
Weight 19.0kg
Solar cells Monocrystalline 156.75 x 156.75 mm (60pcs)
Front Glass 3.2 mm tempered glass, low iron
Frame Anodized / aluminium alloy
Junction Box IP67
Output Cables 4.0mm2, cable lengths 900mm
Connector Mc4 Compatible
Mechanical Load 5400 Pa

Temperature Characteristic

Pmax temperature Characteristic -0.40%/°C
Voc Temperature Coefficient -0.32%/°C
ISC Temperature Coefficient -0.05%/°C
Operating Temperature -40~+85°C
Nominal Operating Cell Temperature(NOCT) 45±2°C

Packaging Configuration

1650 x 992 x 40mm
Container 20’GP 40’GP
Piecesper Pallet 26 26
Palletsper Container 12 28
Piecesper Container 312 728

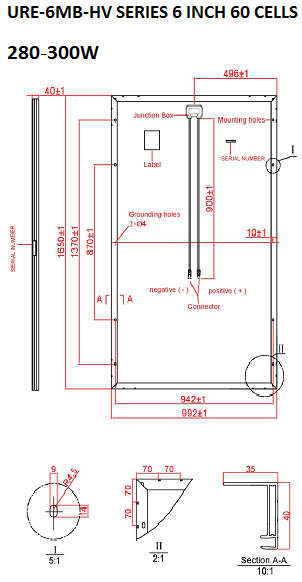

Diagram

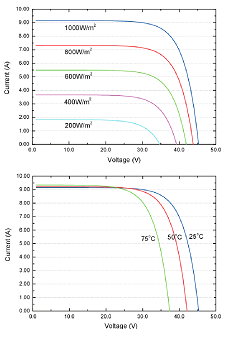

I-C Curve (URE-280-6MB-HV)
