Adjustable Tripod Mounting

Leading Features

  • Adopt concrete block or ground screw piles as foundation
  • Simple design and factory assembled
  • Universal mid and end clamps enables panel installation of thickness 35mm to 50mm
  • Certified to operate in very harsh Environment
  • 20 Years Warranty, aluminum structure treated with anodized layer

Technical Parameters

Install Site Low profit roof or open field
Tilt Angle 10 deg – 25 deg
Max Wind Load upto 60m/s
Snow Load up to 1.4KN/m²
Warranty 20 Years
Certification AS/NZS 1170, MCS, SGS
Material Anodized Aluminum AL6005-T5

Fasteners/td>

SUS304 A2-70
Yield Strength 260N/mm²

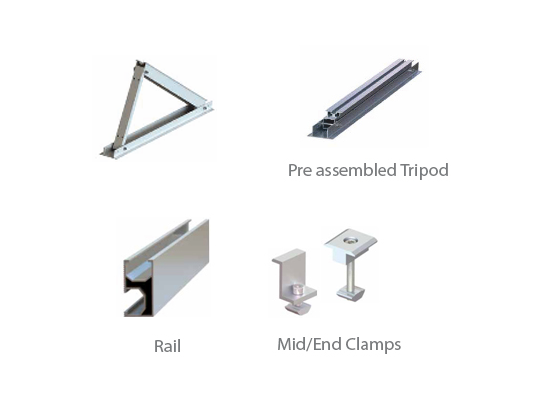

Diagram
