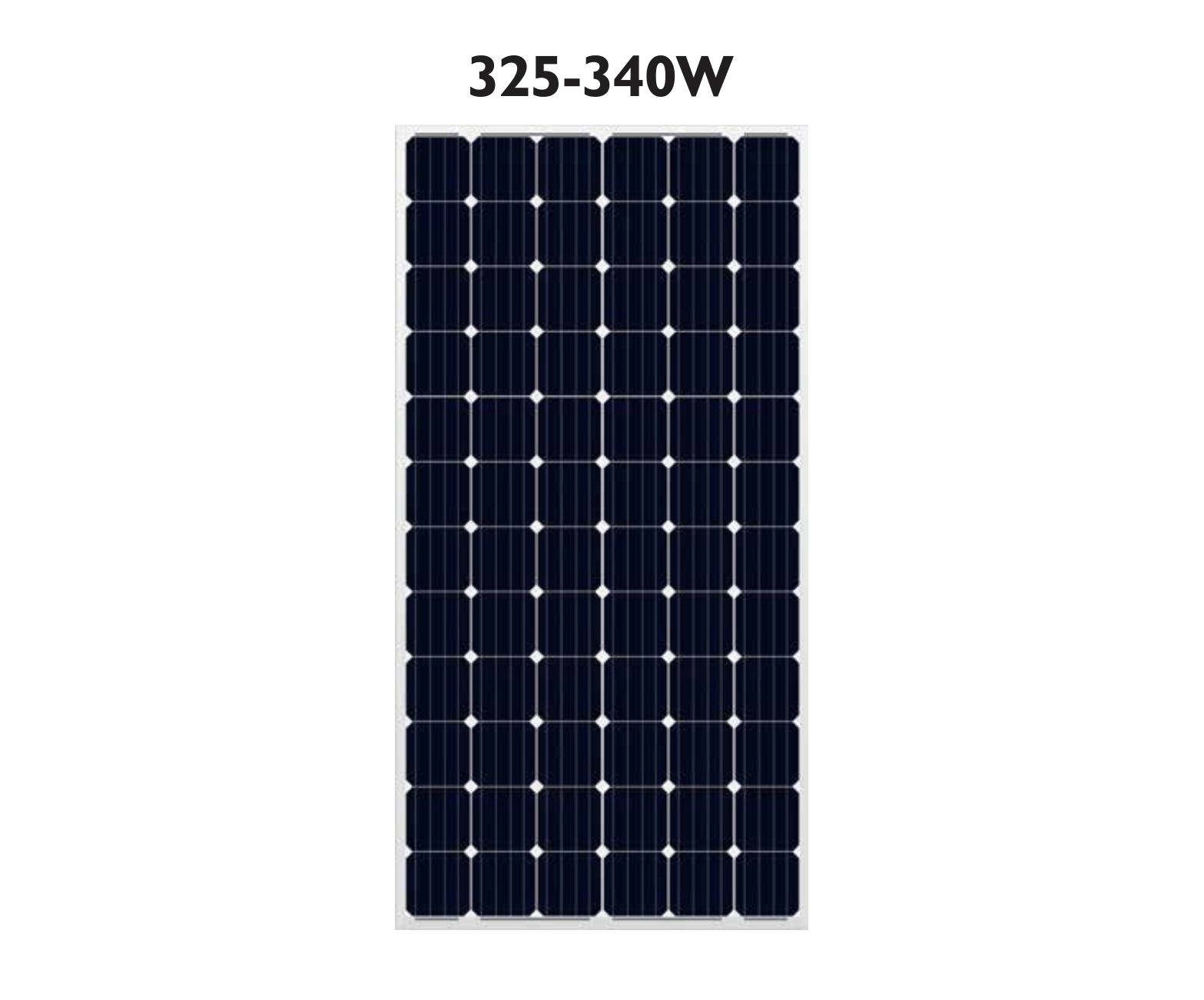

325-340W Range

Leading Features

Superior Module Efficiency as per international Benchmarks
Top Rank in Photon yeild measurement
safety for salt mist corrosion and ammonia corrosion
world 1st company to pass "Thresher Test" and "On-site Power Mesurement Validation" Certificate
Advanced glass and solar cell surface texturing allow for excellent performance in low-light environments
PID free Product, passing TUV SUD system voltage durability test
Suitable for All Climates

Electrical Characteristics (STC):

Model (as per IEC)	URE-325-6MA	URE-330-6MA	URE-335-6MA	URE-340-6MA
Rated Power at STC(Pmp)	325	330	335	340
Open Circuit Voltage(Voc)	46.50	46.70	46.90	47.10
Short Circuit Current(Isc)	8.92	9.01	9.09	9.16
Minimum Power Voltage(Vmp)	37.80	38.00	38.20	38.50
Minimum Power Current(Imp)	8.61	8.69	8.77	8.84
Module Efficiency (nm) (%)	16.56	16.56	17.07	17.33
Power Tolerance (W)	(o,+4.99)	(o,+4.99)	(o,+4.99)	(o,+4.99)
Maximum System Voltage (V)	1000(TUV)	1000(TUV)	1000(TUV)	1000(TUV)
Maximum Series Fuse Rating (A)	15	15	15	15

Electrical Characteristics (NOCT) :

Model (as per IEC)	URE-325-6MA	URE-330-6MA	URE-335-6MA	URE-340-6MA
Rated Power at STC(Pmp)	241	244	248	252
Open Circuit Voltage(Voc)	42.90	43.10	43.30	43.50
Short Circuit Current(Isc)	7.21	7.28	7.34	7.47
Minimum Power Voltage(Vmp)	35.40	35.60	35.80	36.10
Minimum Power Current(Imp)	6.84	6.87	6.93	6.99
Module Efficiency (nm) (%)	16.56	16.56	17.07	17.33
Power Tolerance (W)	(o,+4.99)	(o,+4.99)	(o,+4.99)	(o,+4.99)
Maximum System Voltage (V)	1000(TUV)	1000(TUV)	1000(TUV)	1000(TUV)
Maximum Series Fuse Rating (A)	15	15	15	15

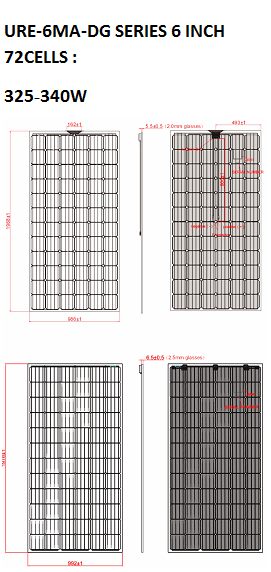

Mechanical Specification

External Dimensions	1968 x 986 x 5.5mm(2.0mm glasses)
Weight	23.0kg
Solar cells	Monocrystalline 156.75 x 156.75 mm (60pcs)
Front Glass	2.0 mm AR tempered glass, low iron
Back Glass	2.0 mm tempered glass, low iron
Junction Box	IP67
Output Cables	4.0mm2, cable lengths 900mm
Connector	Mc4 Compatible
Mechanical Load	2400 Pa

External Dimensions	1978 x 992 x 6.5mm(2.0mm glasses)
Weight	28.5 kg
Solar cells	Monocrystalline 156.75 x 156.75 mm (60pcs)
Front Glass	2.0 mm AR tempered glass, low iron
Back Glass	2.0 mm tempered glass, low iron
Junction Box	IP67
Output Cables	4.0mm2, cable lengths 900mm
Connector	Mc4 Compatible
Mechanical Load	2400 Pa

Temperature Characteristic

Pmax temperature Characteristic	-0.40%/°C
Voc Temperature Coefficient	-0.32%/°C
ISC Temperature Coefficient	-0.05%/°C

Packaging Configuration

	1968x986x5.5mm(2.0mm glasses		1978 x 992 x 6.5mm (2.5 mm glasses
Container	20’GP	40’GP	20’GP	40’GP
Piecesper Pallet	33	33	33	33
Palletsper Container	10	22	10	22
Piecesper Container	330	726	330	726

Diagram

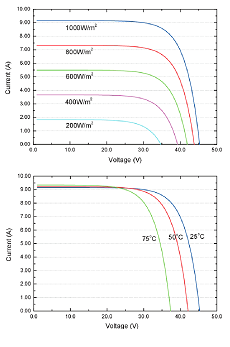

I-C Curve (URE-330-6MA)
