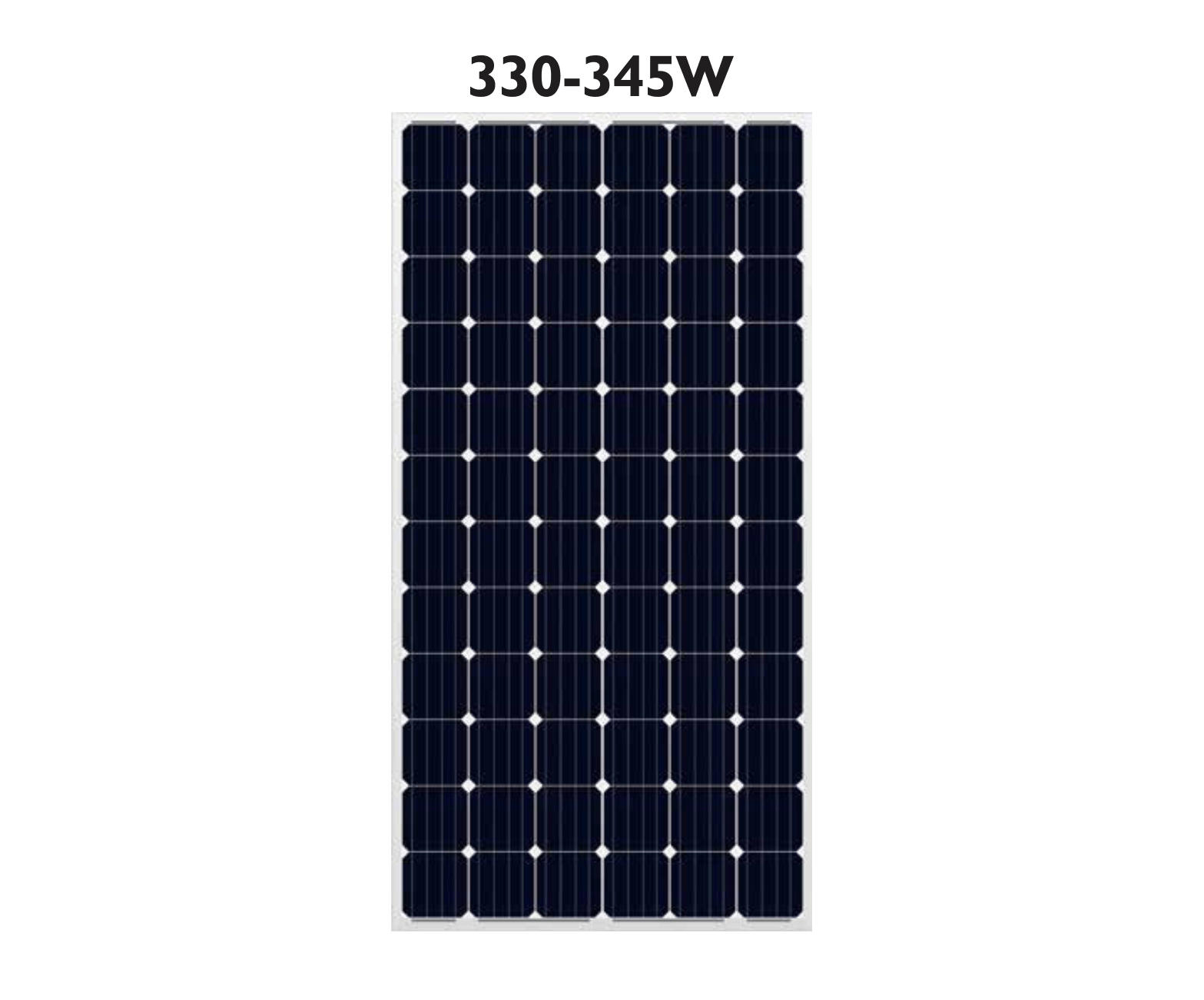

330-345W Range

Leading Features

  • Superior Module Efficiency as per international Benchmarks
  • Top Rank in Photon yeild measurement
  • safety for salt mist corrosion and ammonia corrosion
  • world 1st company to pass "Thresher Test" and "On-site Power Mesurement Validation" Certificate
  • Advanced glass and solar cell surface texturing allow for excellent performance in low-light environments
  • PID free Product, passing TUV SUD system voltage durability test
  • Suitable for All Climates

Electrical Characteristics (STC):

Model (as per IEC) URE-330-6MA URE-335-6MA URE-340-6MA URE-345-6MA
Rated Power at STC(Pmp) 330 335 340 345
Open Circuit Voltage(Voc) 46.1 46.4 46.6 46.8
Short Circuit Current(Isc) 9.14 9.23 9.32 9.43
Minimum Power Voltage(Vmp) 37.3 37.5 37.7 37.9
Minimum Power Current(Imp) 8.85 8.94 9.02 9.11
Module Efficiency (nm) 17.1 17.26 17.52 17.78

Electrical Characteristics

Model URE-330-6MA URE-335-6MA URE-340-6MA URE-345-6MA
Maximum Power at NOCT-(Pmp) 245 249 252 256
Open Circuit Voltage(Voc)(V) 42.6 42.8 43 43.2
Short Circuit Current(Isc) (A) 7.45 7.53 7.59 7.68
Minimum Power Voltage(Vmp) 35.2 35.3 35.5 35.6
Minimum Power Current(Imp) 6.96 7.05 7.1 7.19
Power Tolerance (W) (0,4.99) (0,4.99) (0,4.99) (0,4.99)
Maximum System Voltage (V) 1000(TUV)) 1000(TUV) 1000(TUV) 1000(TUV)
Maximum Series Fuse Rating (A) 20 20 20 20

Mechanical Specification

External Dimensions 1640 x 990 x 40mm
Weight 23 kg
Solar cells Monocrystalline 156.75 x 156.75 mm (60pcs)
Front Glass 3.2 mm tempered glass, low iron
Frame Anodized / aluminum alloy
Junction Box IP67
Output Cables 4.0mm2, cable lengths 900mm
Connector Mc4 Compatible
Mechanical Load 5400 Pa

Temperature Characteristic

Pmax temperature Characteristic -0.41%/°C
Voc Temperature Coefficient -0.32%/°C
ISC Temperature Coefficient -0.05%/°C
Operating Temperature -40~+85°C
Nominal Operating Cell Temperature(NOCT) 45±2°C

Packaging Configuration

Container 20’GP 40’GP 20’GP 40’GP
Piecesper Pallet 21 21 26 26
Palletsper Container 10 22 10 22
Piecesper Container 210 462 260 572

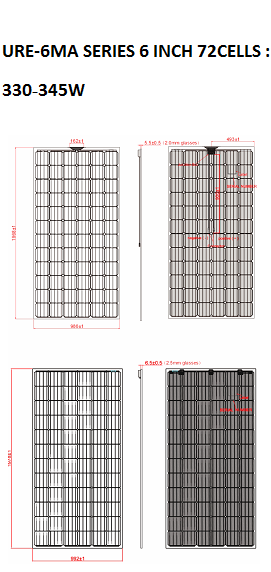

Diagram

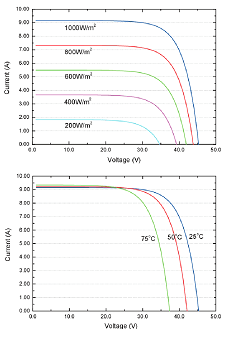

I-C Curve (URE-330-6MA)
