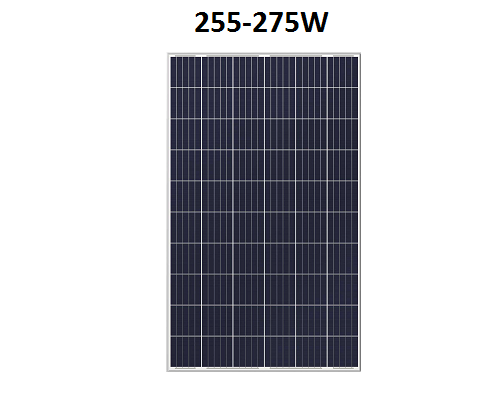

Premium Panel

Leading Features

  • Superior Module Efficiency as per international Benchmarks
  • Top Rank in Photon yeild measurement
  • safety for salt mist corrosion and ammonia corrosion
  • world 1st company to pass "Thresher Test" and "On-site Power Mesurement Validation" Certificate
  • Advanced glass and solar cell surface texturing allow for excellent performance in low-light environments
  • PID free Product, passing TUV SUD system voltage durability test
  • Suitable for All Climates

Electrical Characteristics

Model (as per IEC URE-255-6PB URE-260-6PB URE-265-6PB URE-270-6PB URE-275-6PB UNIT
Rated Power at STC(Pmp) 255 260 265 270 275 W
Power Tolerance (0,+4.99) (0,+4.99) (0,+4.99) (0,+4.99) (0,+4.99) W
Maximum Power at STS 259.99 264.99 269.55 274.99 279.99 W
Minimum Module Efficiency(nm) 15.7 16.0 16.3 16.6 16.9 %
Open Circuit Voltage(Voc) 38.1 38.2 38.3 38.4 38.5 V
Short Circuit Current(Isc) 8.60 8.67 8.73 8.82 8.88 A
Minimum Power Voltage(Vmp) 31.9 32.1 32.4 32.7 33.0 V
Minimum Power Current(Imp) 8.00 8.10 8.18 8.28 8.34 A
Minimum system voltage

1000(TUV),600(UL)

1000(TUV),600(UL) 1000(TUV),600(UL) 1000(TUV),600(UL) 1000(TUV),600(UL) V
Minimum series fuse rating 15 15 15 15 15 A

Mechanical Specification

External Dimensions 1640 x 990 x 45mm
Weight 19.0kg
Solar cells Polycrystalline 156 x 156 mm (60pcs)
Front Glass 3.2 mm tempered glass, low iron
Frame Anodized /Electrophoretic aluminium alloy
Junction Box IP65/IP67
Output Cables 4.0mm2, symmetrical lengths 900mm
Connector Mc4 Compatible
Mechanical Load 5400 Pa
Hailstone Impact Test 80km/h for 25mm ice ball

Temperature Characteristic

Pmax temperature Characteristic -0.42%/°C
Voc Temperature Coefficient -0.32%/°C
ISC Temperature Coefficient -0.04%/°C
Operating Temperature -40~+85°C
Nominal Operating Cell Temperature(NOCT) 45±2°C

Packaging Configuration

Container 20’GP 40’GP 40’HC
Piecesper Pallet 30 30 N.A
Palletsper Container 12 28 N.A
Piecesper Container 360 840 N.A

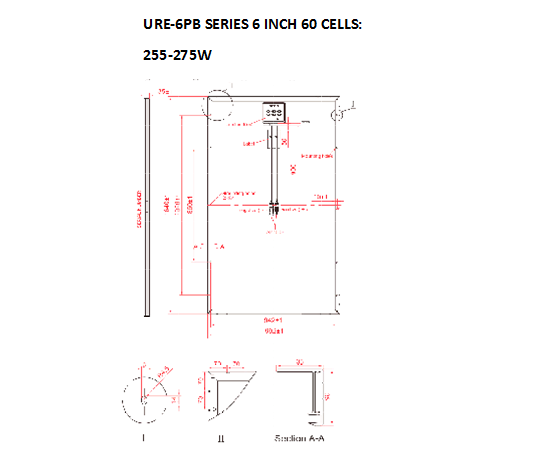

Diagram
