Standard Panel

Leading Features

  • Superior Module Efficiency as per international Benchmarks
  • Positive power output tolerance 0/ + 5W
  • Salt mist, Ammonia and Hail Resistant (IEC 61701)
  • 10 year replacement warranty on workmanship
  • IP 67 rated MC4 compatible connectors, IEC 61215,IEC 61730 (I & II)
  • PID Resistant with Long Term reliability and Glass with Anti Reflective Coating
  • Suitable for All Climates

Electrical & Mechanical Characteristics

Model (as per IEC URE-24×290 URE-24×295 URE-24×300 URE-24×305 URE-24×310 URE-24×315 URE-24×320
Nominal Maximum Power Pm (W)* 290 295 300 305 310 315 320
Number of Cells 72 72 72 72 72 72 72
Power Tolerance +5/-0% +5/-0% +5/-0% +5/-0% +5/-0% +5/-0% +5/-0%
Open Circuit Voltage, VOC (V)* 44.20 44.50 44.80 45 45.30 45.60

46.0
Short Circuit Current, ISC (A)* 8.40 8.50 8.60 8.70 8.77 8.85 8.90
Voltage at Maximum Power, Vmp (V)* 36.40 36.50 36.60 37.00 37.50 37.80 38.1
Current at Maximum Power, Imp (A)* 7.97 8.09 8.20 8.25 8.28 8.34 8.40
Maximum System Voltage (V) 1000 1000 1000 1000 1000 1000 1000
Module Efficiency (%) 14.95 15.20 15.46 15.72 15.98 16.23 16.49
Maximum Series Fuse Rating (A) 15 15 15 15 15 15 15
*Under Standard Test Conditions (STC) of 1000W/m2 irradiance, AM 1.5 spectrum and 25°C Cell temperature.
Module Length (L)-mm 1960 1960 1960 1960 1960 1960 1960
Module Width (W)-mm 990 990 990 990 990 990 990
Mounting Holes Pitch (Y)-mm 1000 1000 1000 1000 1000 1000 1000
Mounting Holes Pitch (X)-mm 948 948 948 948 948 948 948
Weight 22 22 22 22 22 22 22

Module Specification

Solar Cell Type Polycrystalline
Front Cover (Material / Thickness) High transmission low iron 3.2mm tempered glass
Encapsulate EVA (Ethylene Vinyl Acetate)
Frame Material Anodized aluminium frame with twin wall profile (6036-T6)
Junction Box (Protection degree) 3 bypass diodes, IP-67, TUV+UL 1000V
Cable & Connectors 4mm2, TUV+UL Certified, 1000mm & MC4 Compatible
Application Class Class A (Safety Class II)

Thermal Characteristics

Temperature coefficient of current (Isc), α (%/°C) +0.04%/°C
Temperature coefficient of Voltage (Voc), β (%/°C) -0.32%/°C
Temperature coefficient of Power (Pm), γ (%/°C) -0.43%/°C
NOCT (°C) 47°C ± 2°C
Operating temperature range (°C) -40°C – +85°C

Packaging Configuration

No. of modules per 40 feet Container 550 Nos
No. of modules per 20 feet Container 125Nos

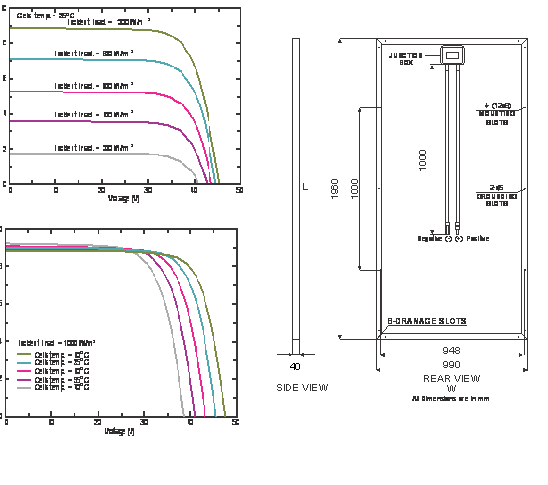

I-V Curve(URE-290-E11B) Diagram
